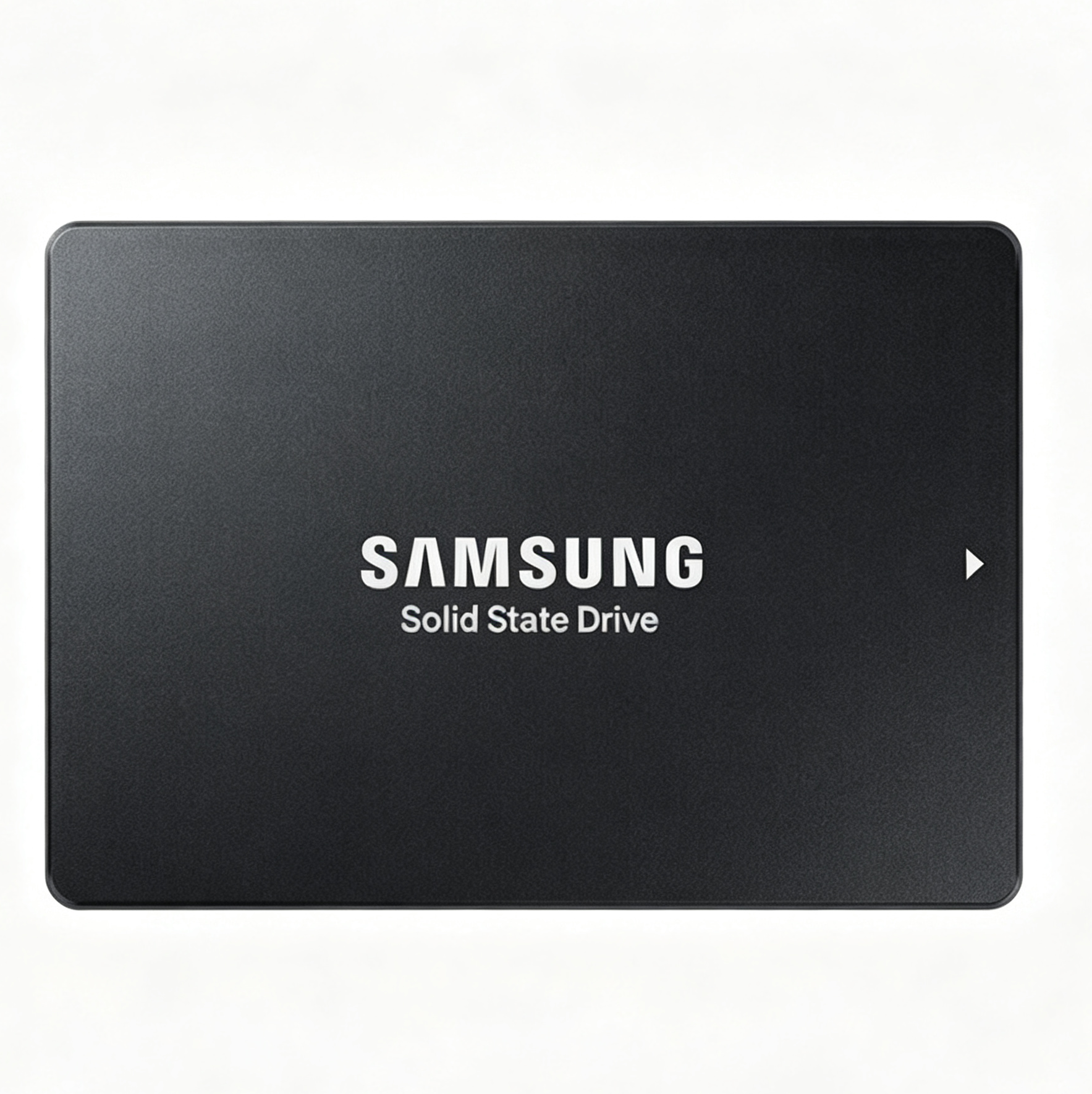

MZ7L3960HCJR-000B7C

Enterprise‑Grade SSD for High‑IO Workloads

Offering 960GB capacity in 2.5‑inch form factor, MZ7L3960HCJR‑000B7C provides high‑speed storage for reliability‑oriented data‑center infrastructures. It enables cost‑effective and dependable access to structured and unstructured data. It empowers IT architects to deliver steady performance, robust reliability and comprehensive data security for 7×24‑hour critical services, while reducing total cost of ownership.

High‑Speed Storage for Non‑Stop Operation

It features an MTBF rating of 2,000,000 hours with enterprise endurance, outperforming consumer‑grade SSDs. Built with Samsung V‑NAND TLC flash, end‑to‑end ECC and power‑loss protection, it maintains consistent read‑write performance within RAID multi‑drive arrays.
  • Sequential Read: 560 MB/s
  • Sequential Write: 530 MB/s
  • 4KB Random Read: 98000 IOPS
  • 4KB Random Write: 30000 IOPS

High Performance for Mainstream Data‑Center Applications

Equipped with SATA 6Gb/s interface, it is widely compatible with most servers and storage enclosures. It supports NCQ and TRIM, and can be managed via Samsung SSD DC Toolkit. It fits virtualization, application servers and distributed storage scenarios to cut maintenance overhead.

Enhanced Reliability, Data Protection & Security

End‑to‑end ECC and power‑loss protection are implemented. UBER rating is 1 per 10^17. Designed for 7×24‑hour continuous operation to safeguard enterprise data. Ideal for virtualization, application servers, warm‑cold data storage and legacy SATA HDD replacement scenarios。
Item Specifications

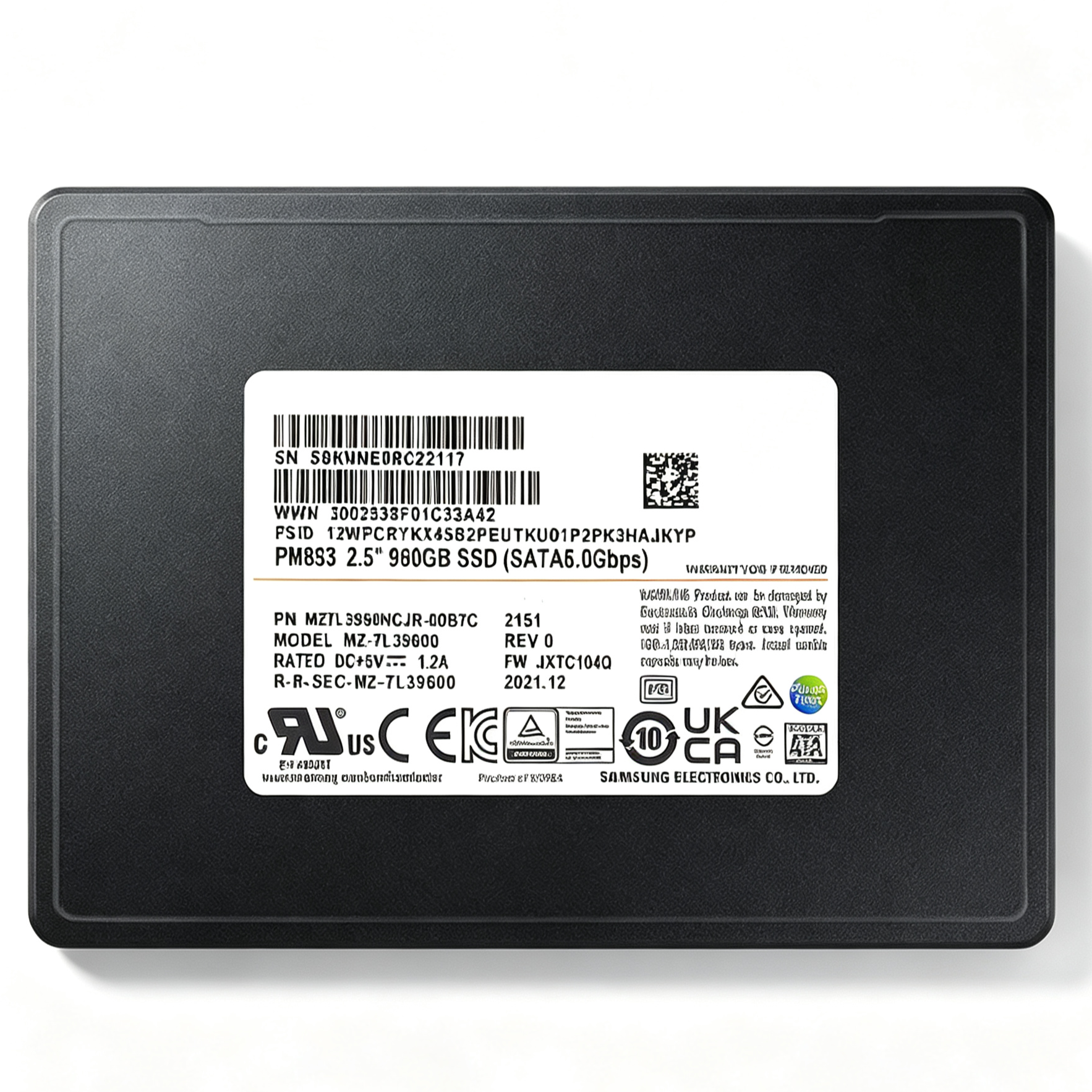

Part Number MZ7L3960HCJR‑000B7C
Model Series PM893
Capacity 960GB
Form Factor 2.5‑inch, 7mm height
Interface SATA 6Gbps (SATA 3.3)
NAND Flash Samsung 128‑layer V‑NAND TLC
Sequential Read 550 MB/s
Sequential Write 520 MB/s
Random 4K Read 95000 IOPS
Random 4K Write 30000 IOPS
MTBF 2,000,000 hours
Power Requirement DC +5V, 1.2A
Operating Temperature 0°C ~ 70°C
Security Feature AES‑XTS‑256 encryption, TCG Opal 2.0
Sector Support 512‑byte / 4K native compatible
Dimensions 100.2 × 69.85 × 7 mm
Country of Origin Republic of Korea
Warranty 3‑year manufacturer warranty
